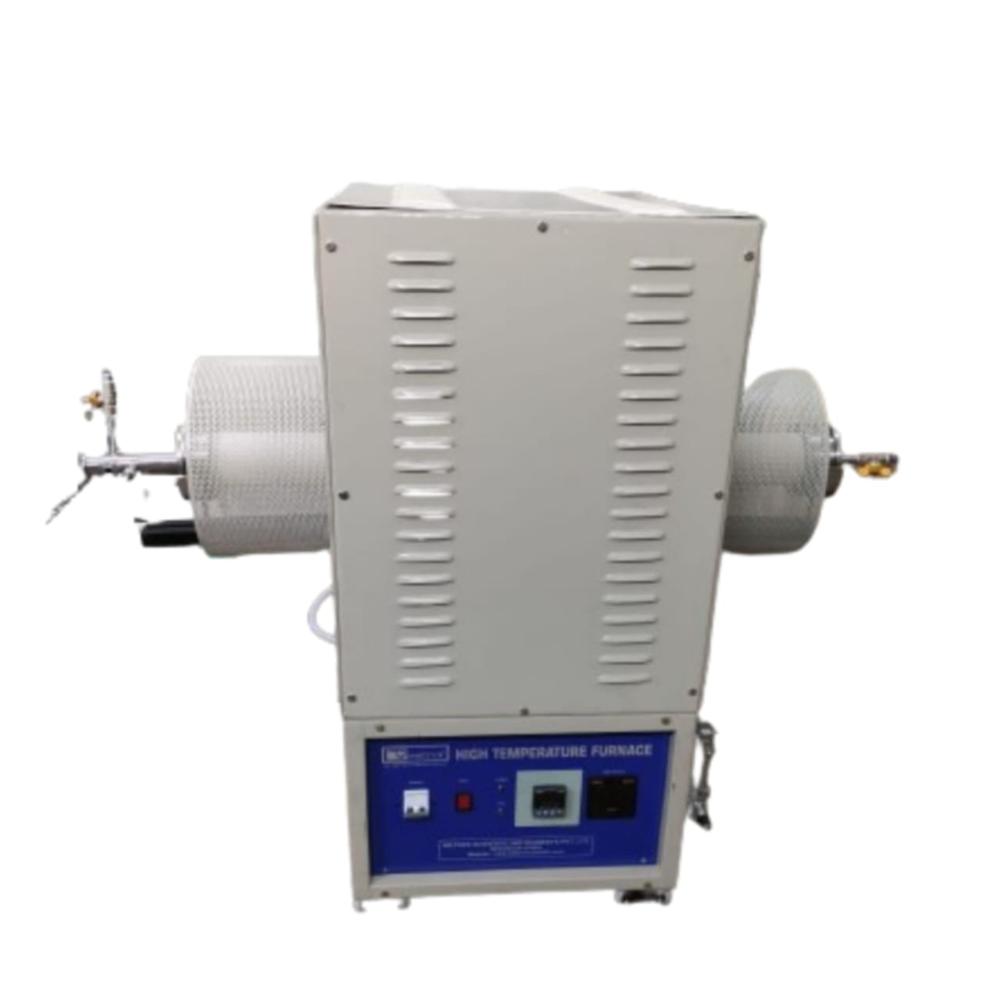

TUBULAR FURNACE

TUBULAR FURNACE
TUBULAR FURNACE
TUBULAR FURNACE

TUBULAR FURNACE Specification

  • Usage
  • Industrial
  • Condition
  • New
  • Product Type
  • Horizontal
  • Voltage
  • 230 V, 50 Hz, Single Phase & Power: 2500 W Volt (v)
  • Weight
  • 80 Kilograms (kg)
  • Warranty
  • 1 YEAR


TUBULAR FURNACE Trade Information

  • Minimum Order Quantity
  • 1 Number
  • Delivery Time
  • 8 Week


About TUBULAR FURNACE

MS Power Coated Tubular Furnace, Length:900 mm
Operation mode :Horizontal
Maximum Temp. : 1300C,  Working Temp.: 1300C
Tube Material : High density alumina
Tube Size: OD-60/ID-50/Length-1000 mm
Controlling Thermocouple : R-type Controlling Sensor
Temperature programmer :1 program & 16 segment
Heat up-time : 45 min
Furnace case design to maintain lower temperatures on external surface as per BSEN 61010 standards. High quality of insulation to ensure that the maximum external surface furnace wall temperature during continuous operation shall not exceed 50C.
Heating length : 300 mm
Heater Type :Radiation free
Insulation materials without categorization according to EC Regulation No 1272/2008 (CLP). High-quality fiber insulation material which are not classified as Carcinogenic according to TRGS 905, class 1 or 2 for furnace for the high working temperature as per latest international norms.
Gas supply systems :            2 gas-mixture channels with proper valves provided. Channels for unused/exhaust gas provided, PROCESS ATMOSHPARE
 10-20% H2/N2, Ar, N2, O2, and, Air
Fittings for controlled atm : Stainless steel (SS310 or 304) / Aluminum fittings are provided with water cooling arrangement and Whiton o ring and suitable for vacuum and purging multiple gases.

TUBULAR FURNACE
TUBULAR FURNACE

Price 1000000.0 INR/ Number

  • Minimum Order Quantity
  • 1 Number
  • Delivery Time
  • 8 Week
images Get Latest Price
Request To Call Back
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Furnace Products Category

Programmable Muffle Furnace

Programmable Muffle Furnace

Type : Muffle Furnace

Condition : New

Feature : Programmable temperature control

Usage : Heating calcination annealing purposes, Other

Size : Compact

Application : Hightemperature heating applications in laboratories or industrial settings

Get a Price/Quote
High Temperature Muffle Furnace - 1700 C

High Temperature Muffle Furnace - 1700 C

Type : MF17P or Muffle Furnace

Condition : New

Feature : Reliable insulation high temperature tolerance up to 1700C

Usage : Used for laboratory and industrial settings requiring hightemperature operations, Other

Size : Varied depending on needs and model (e.g. lab size or industrial)

Application : Hightemperature material testing heat treatment or sintering

Get a Price/Quote
Three Zone Split Tube Furnace (Cvd)

Three Zone Split Tube Furnace (Cvd)

Type : Split Tube Furnace (CVD)

Condition : New

Feature : Three independently controlled temperature zones, rapid heating, computer connectivity, programmable temperature profiles, PID controller

Usage : Other, Laboratory, Research, Material Processing

Size : Tube diameter options: 50mm, 60mm, 80mm, 100mm (customizable)

Application : Chemical Vapor Deposition, Thermal Treatment, Synthesis

Get a Price/Quote
GRADIENT SPLIT TUBE FURNACE- (THREE ZONE)

GRADIENT SPLIT TUBE FURNACE- (THREE ZONE)

Type : SPLIT TUBE FURNACE

Condition : New

Feature : Heavy Duty

Usage : Heat Treatment furnace

Size : 650 x 820 x 500. mm

Application : Industrial

Get a Price/Quote
