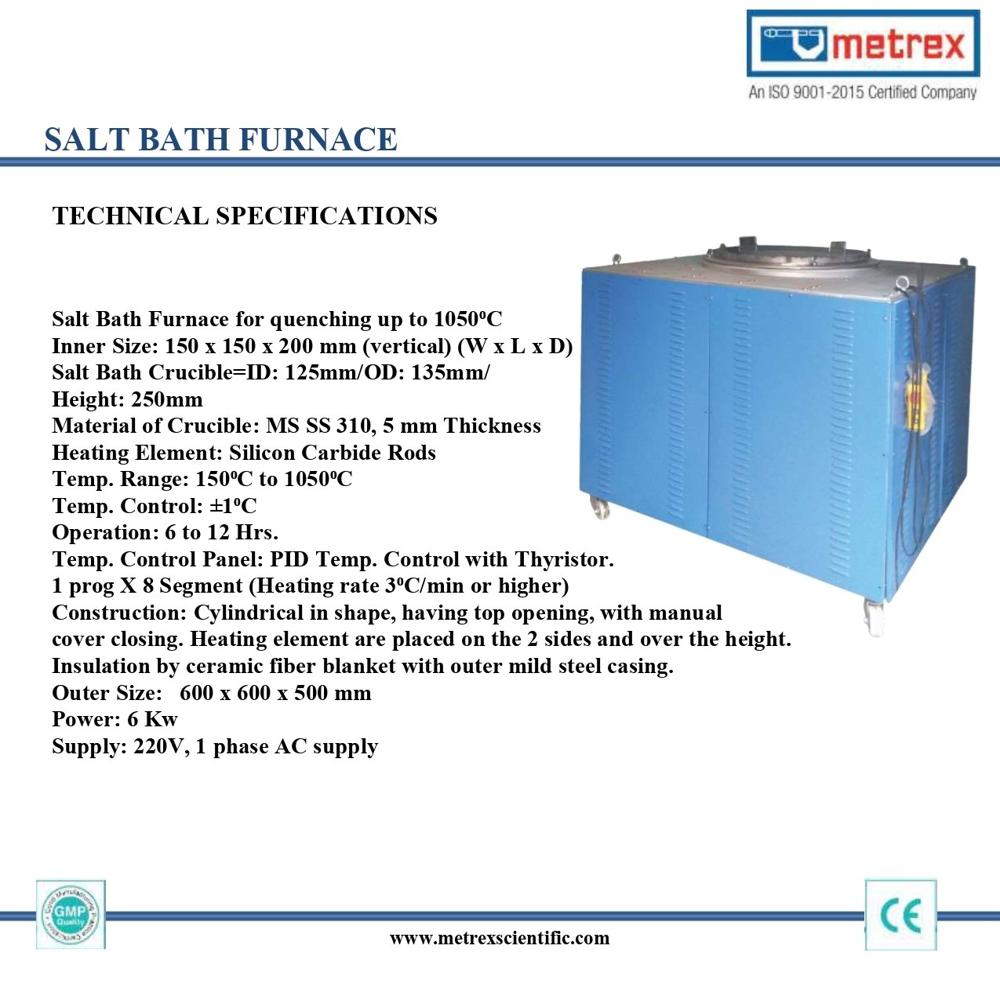

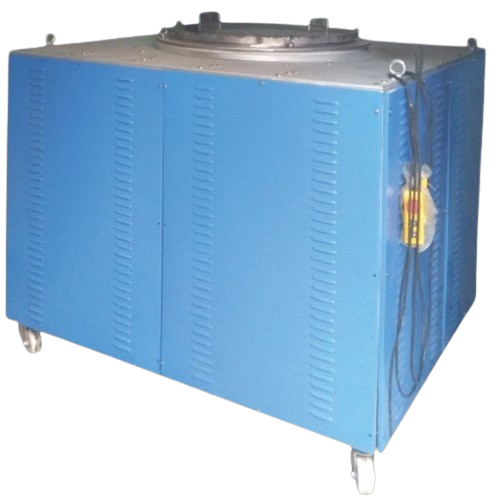

SALT BATH FURNACE

About SALT BATH FURNACE

Salt Bath Furnace for quenching up to 1050 C

Inner Size: 150 x 150 x 200 mm (vertical) (W x L x D)

Salt Bath Crucible=ID: 125mm/OD: l35mm/

Height: 250mm

Material of Crucible: hls SS 310, 5 mm Thickness

Heating Element: Silicon Carbide Rods

Temp. Range: 150C to 1050C

Temp. Control: +1C

Operation: 6 to 12 Hrs.

Temp. Control Panel: PID Temp. Control with Thyristor. 1 prog X 8 Segment (Heating rate 3C/min or higher)

Construction: Cylindrical in shape, having top opening, with manualcover closing. Heating element are placed on the 2 sides and over the height. Insulation by ceramic fiber blanket with outer mild steel casing.

Outer Size: 600 x 600 x 500 mm

Power: 6 Kw

Supply: 220V, 1 phase AC supply
