Customized Elevated Temperature Furnace

Customized Elevated Temperature Furnace Specification

Condition
New

Usage
Heat Treatment furnace

Height
650 Millimeter (mm)

Power
18000 Watt (w)

Voltage
415 Volt (v)

Dimensions
650 Millimeter (mm)

Length
750 Millimeter (mm)

Weight
200 Kilograms (kg)

Width
650 Millimeter (mm)

Fuel Type
electric

Capacity
200 Kg

Warranty
1 YEAR

Customized Elevated Temperature Furnace Trade Information

Minimum Order Quantity
1 Number

Delivery Time
10 Week

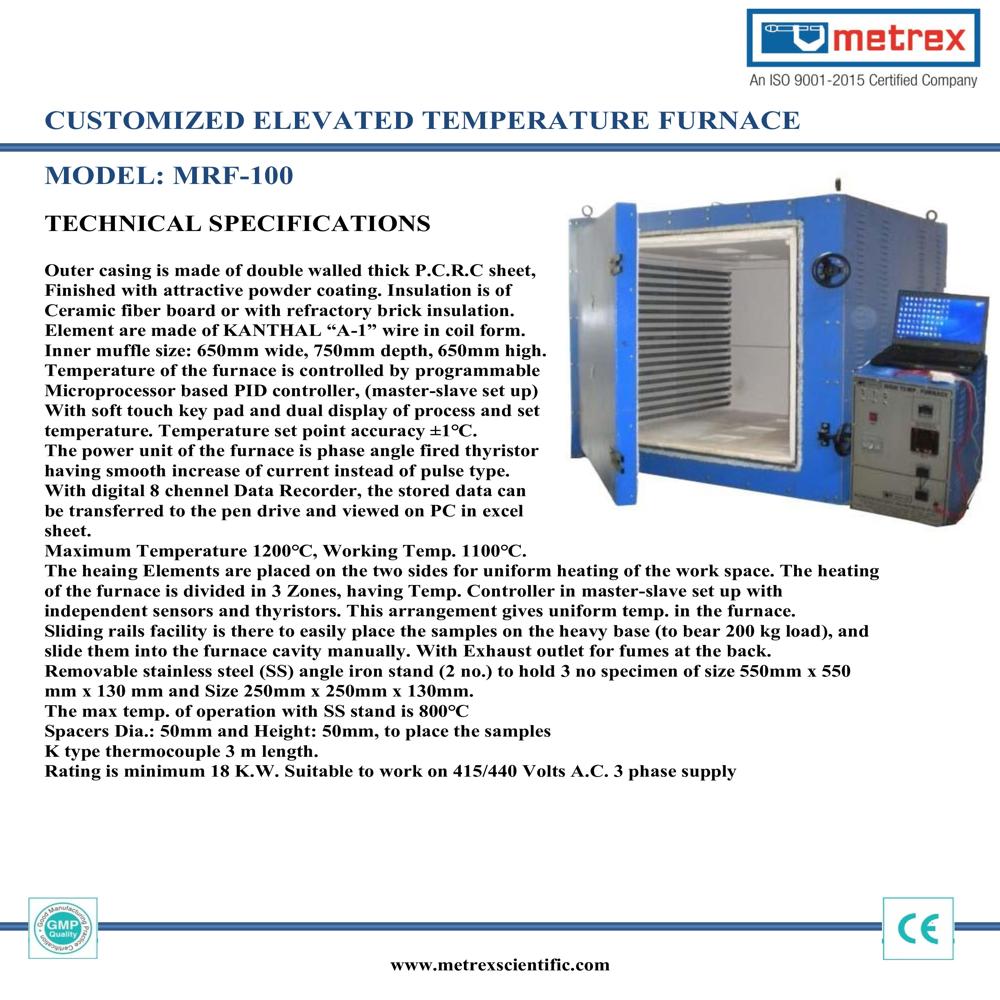

About Customized Elevated Temperature Furnace

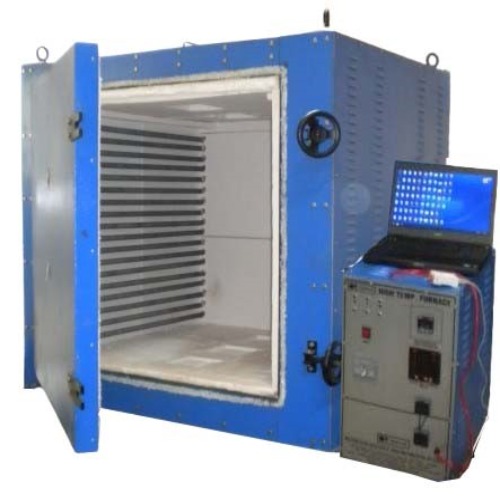

Customized Elevated Temperature Furnace

Maximum Temperature :1200

Working Temperature :1000

Outer Casing :Made of double walled thick P.C.R.C sheet finished with powder coating.

Insulation : Ceramic fiber board or insulation. Insulation element e made of KANTHAL A-1 wire in coil form placed on 2 sides supported on Alumina tubes.

Inner muffle size :Width: 650mm, Depth: 750mm, Height: 650mm

Temperature Control :Temperature of the furnace is controlled by programmable microprocessor based PID controller, (master-slave set up) with soft touch key pad and dual display of process and set temperature.

Temperature set point accuracy :1

Power unit of the furnace :Phase angle fired Thyristor having smooth increase of current instead of pulse type.

Data Acquisition System :Digital 8 channel Data Recorder, the stored data can be transferred to the pen drive and viewed on PC in excel sheet.

Base of the Furnace: Sliding rails facility easily place the samples on the heavy base (to bear 200 kg load), and slide them into the furnace cavity manually.

With Exhaust outlet for fumes at the back.

Heating Zone : To achieve uniform temp. in the furnace; the heating of the furnace is divided in 3 Zones, having temperature controller in master-slaves set up with independent sensor and thyristors.

Stainless steel Stand : Removable stainless steel (SS) angle iron stand (2 no.) to hold 3 no. specimen of size 550 mm X 550 mm X 130 mm and size 250 mm x 250 mm x 130 mm.

Temp. of operation with SS stand :The max temperature of operation with SS stand 800.

Power Range :Rating is minimum 18 K.W suitable to work on 415/440 Volts A.C

High temperature handling Gloves :2 Pairs

Spacers :Dia: 50mm and Height: 50mm, to place the samples

Thermocouple :K type thermocouple 3 m length.
